Tactical Quiescence Search (TQS)

A tactical quiescence search (TQS) is a quiescence search algorithm with more extensions. The engine finds tactics beyond the scope of capture-only moves.

The idea

Quiescence Search algorithm (QS) is used to ensure the engine analyses only quiet positions, to favor it finds a tactical moves. Tactics in QS are mostly based on cature-only moves and sometimes on checking moves.

TQS brings more to the table by considering other non-quiet moves, like check-evader moves and promotions. Non-quiet moves are the essence of tactical play, thus scrolling through them helps making better tactical decisions. In the example section, the TQS remarquably finds several type of tactics. In the limiting factors section, the pros and cons of the TQS are (further) discussed.

Pseudo Code

Here is a pseudo C code for the TQS algorithm, where check_depth is the maximum amount of check extension in a given line of quiescence search, and quiesce_moves() is a generator of all the differents quiescent moves mentionned above (captures, checks, promotions, check-evaders) :

// Tactical Quiescence Search (TQS)
int TQS(int alpha, int beta, int check_depth=10) { // check_depth could be changed

    stand_pat = evaluate();
    moves = quiesce_moves();

    // enf of line
    if (no move in moves) {
        legals = legals_moves();
        if (no move in legals) {
            if is_checkmate() {
                return -mateValue + nodeHeight; // for mate distance pruning
            }
            return 0; // it is a draw
        }
    }

    // mate distance pruning
    // upper bound
    mating_value = mateValue - nodeHeight;
    if (mating_value <= beta) {
        beta = mating_value;
        if (alpha >= mating_value) {
            return mating_value;
        }
    }
    // lower bound
    mating_value = -mateValue + nodeHeight;
    if (mating_value >= alpha) {
        alpha = mating_value;
        if (beta <= mating_value) {
            return mating_value;
        }
    }

    // normal QSearch stuff
    if  (stand_pat >= beta) { // beta cutoff
        return beta;
    }
    if (alpha < stand_pat) {
        alpha = stand_pat;
    }

    for (move in moves) { // move is defined above

        // check extension : checking moves
        if !( is_capture(move)) && gives_check(move) { // capture moves giving check could be treated normally

            // extension limite reached
            if (check_extension <= 0) {
                continue;
            }

            // extension search
            make(move);
            score = -TQS(-beta, -alpha, check_depth-1);
            unmake(move);

            if (score >= beta) { // beta cutoff
                return beta;
            }
            if (score > alpha) {
                alpha = score;
            }

            continue; // to avoid else statement on no-checking move
        }

        make(move);
        score = -TQS(-beta, -alpha, check_depth);
        unmake(move);

        if (score >= beta) { // beta cutoff
            return beta;
        }
        if (score > alpha) {
            alpha = score;
        }
    }

    return alpha;
}

If quiesce_moves() does not generates checks-evaders, the following addition is possible (after end of the game checking) :

        // almost in the code
        if (no move in legals) {
            if is_checkmate() {
                return -mateValue + nodeHeight; // for mate distance pruning
            }
            return 0; // it is a draw
        }

        // check extension (tactical) : check-evaders moves
        if is_check() {

            for (move in legals) {
                make(move);
                score = -TQS(-beta, -alpha, check_depth);
                unmake(move);

                if (score >= beta) { // beta cutoff
                    return beta;
                }
                if (score > alpha) {
                    alpha = score;
                }
            return alpha;
            }
        }

Notice that this piece of code (concerning beta-cutoff) appears several times in the code, so the code could probably be optimised :

if (score >= beta) { // beta cutoff
    return beta;
}
if (score > alpha) {
    alpha = score;
}

Examples

In this section, the following position has been considered to compare classic QS and TQS.

Check-extensions

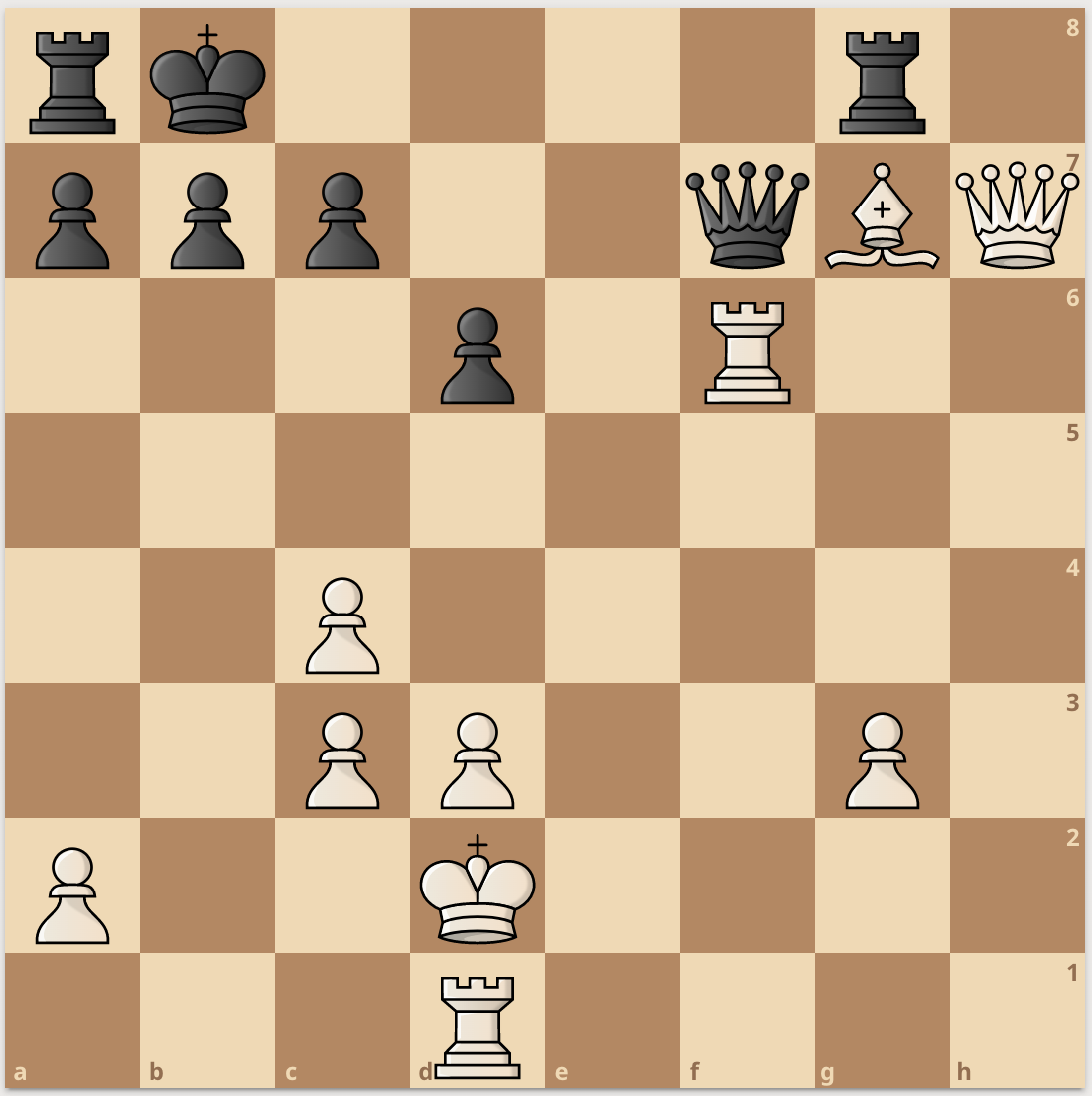

Black to play. FEN : rk4r1/ppp2qBQ/3p1R2/8/2P5/2PP2P1/P2K4/3R4 b - - 0 1

Here, the best move is 1... Qe8.
But a classical quiescence search with no check-extension will find 1... Qxg7 as the best move, because 2. Qxg7 Rxg7 wins the bishop. But without check extension, the QS is oblivious to 3. Rf8#.
In this case, TQS finds 1... Qe8 as the best move.

Check evasions

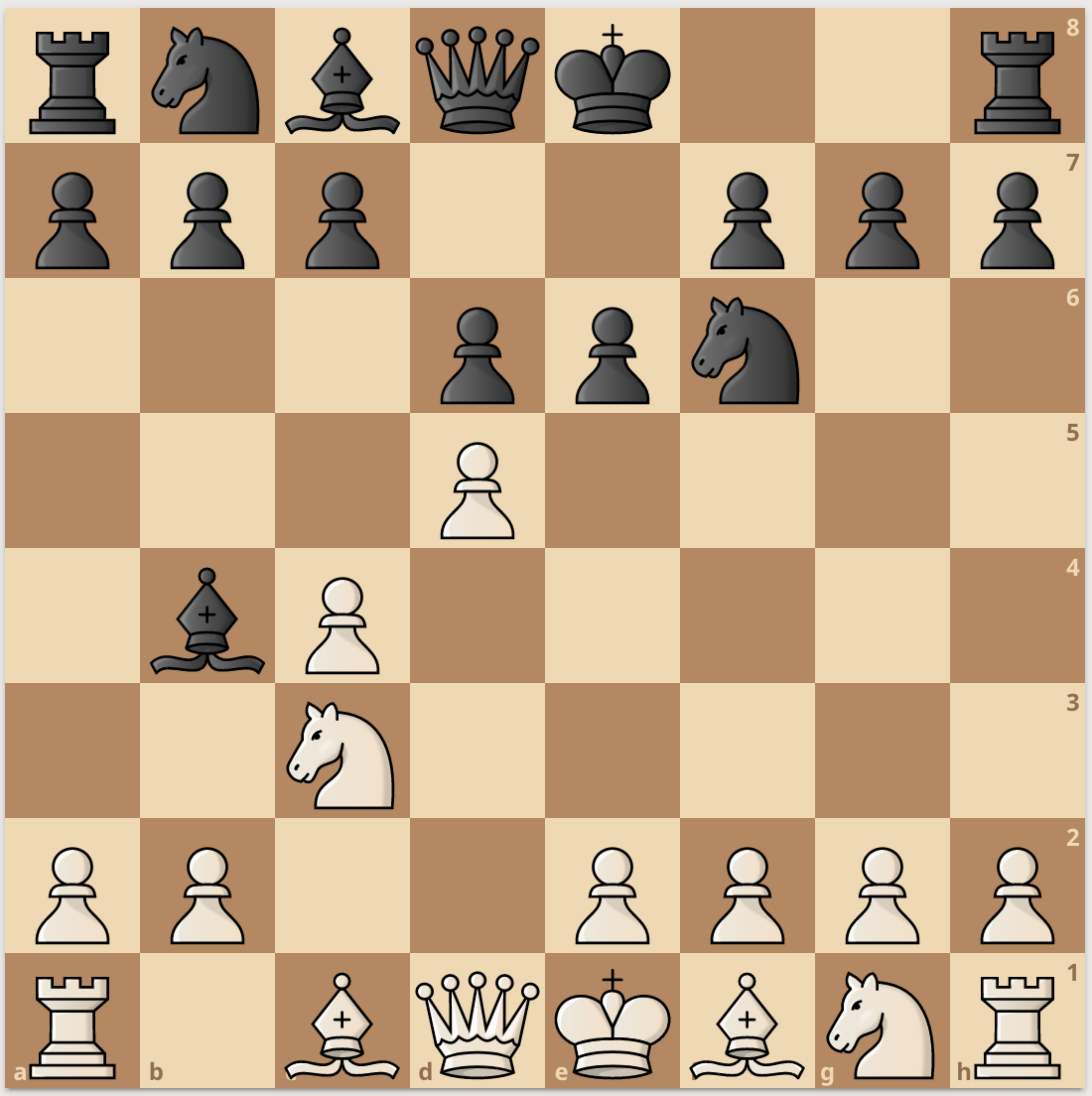

White to play. FEN : rnbqk2r/ppp2ppp/3ppn2/3P4/1bP5/2N5/PP2PPPP/R1BQKBNR w KQkq - 0 1

Here, the best move is 1. Qa4+.
A classical QS + check-extensions can see that move, but as it gives check and there is not any possible captures or checking moves after 1. Qa4+, QS will ask an evaluation. Unless SEE is implemented in evaluation, QS will not see why this move is so good, taking the bishop in b4.
However, TQS will see all possible tactical lines after 1. Qa4+ and will see that White is winning a bishop (or a knight after 1... Nc6).

Check-extensions + Check evasions

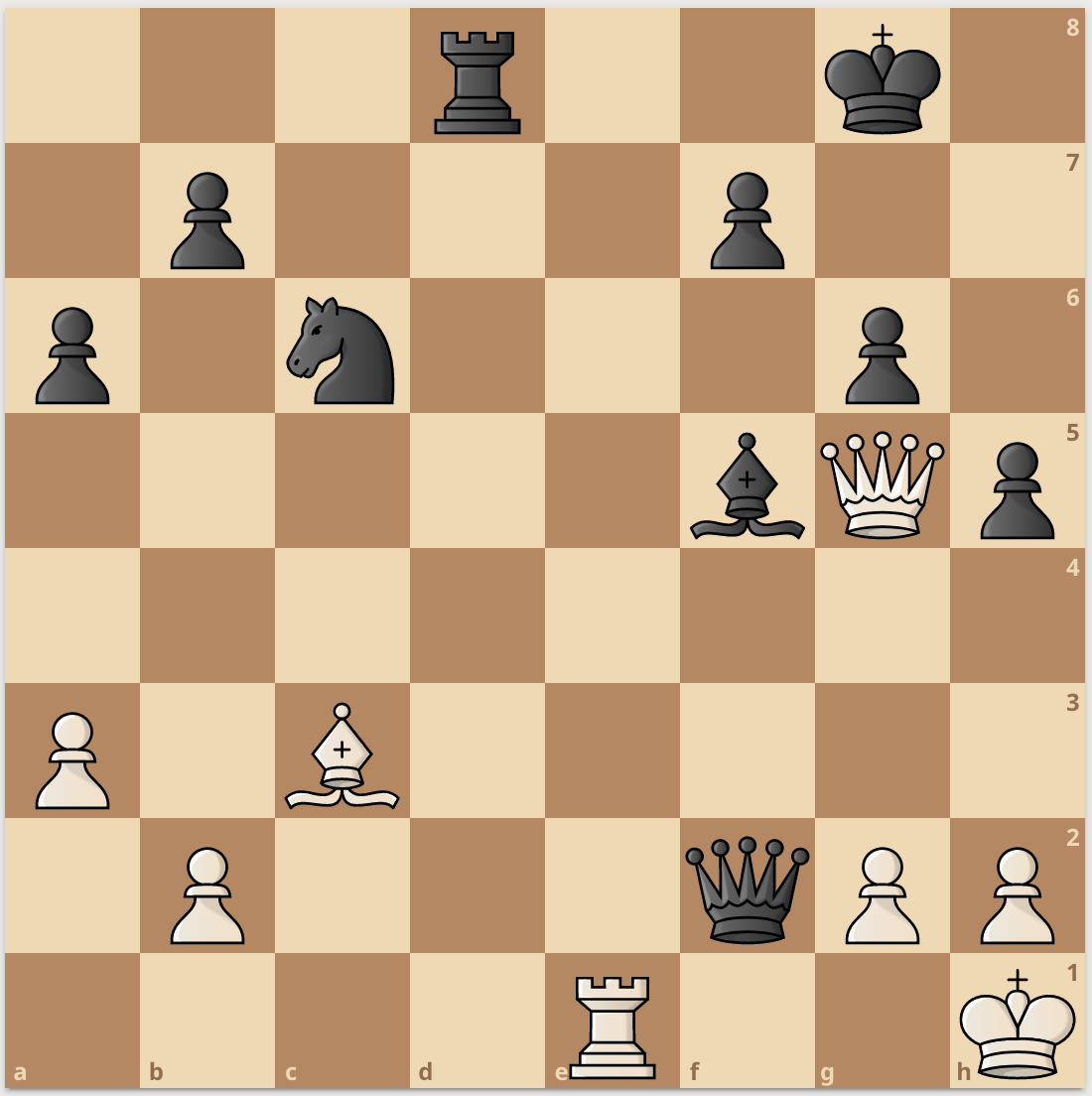

White to play. FEN : 3r2k1/1p3p2/p1n3p1/5bQp/8/P1B5/1P3qPP/4R2K w - - 0 1

Here, the right sequence is 1. Qxd8+ Nxd8 2. Re8+ Kh7 3. Rh8#.
With a classical approach, QS will not search 1. Qxd8+ with captures-only moves, because after 1. Qxd8+ Nxd8 White loses the queen.
As each move gives or responds to a check, TQS finds the best sequence.

Promotions

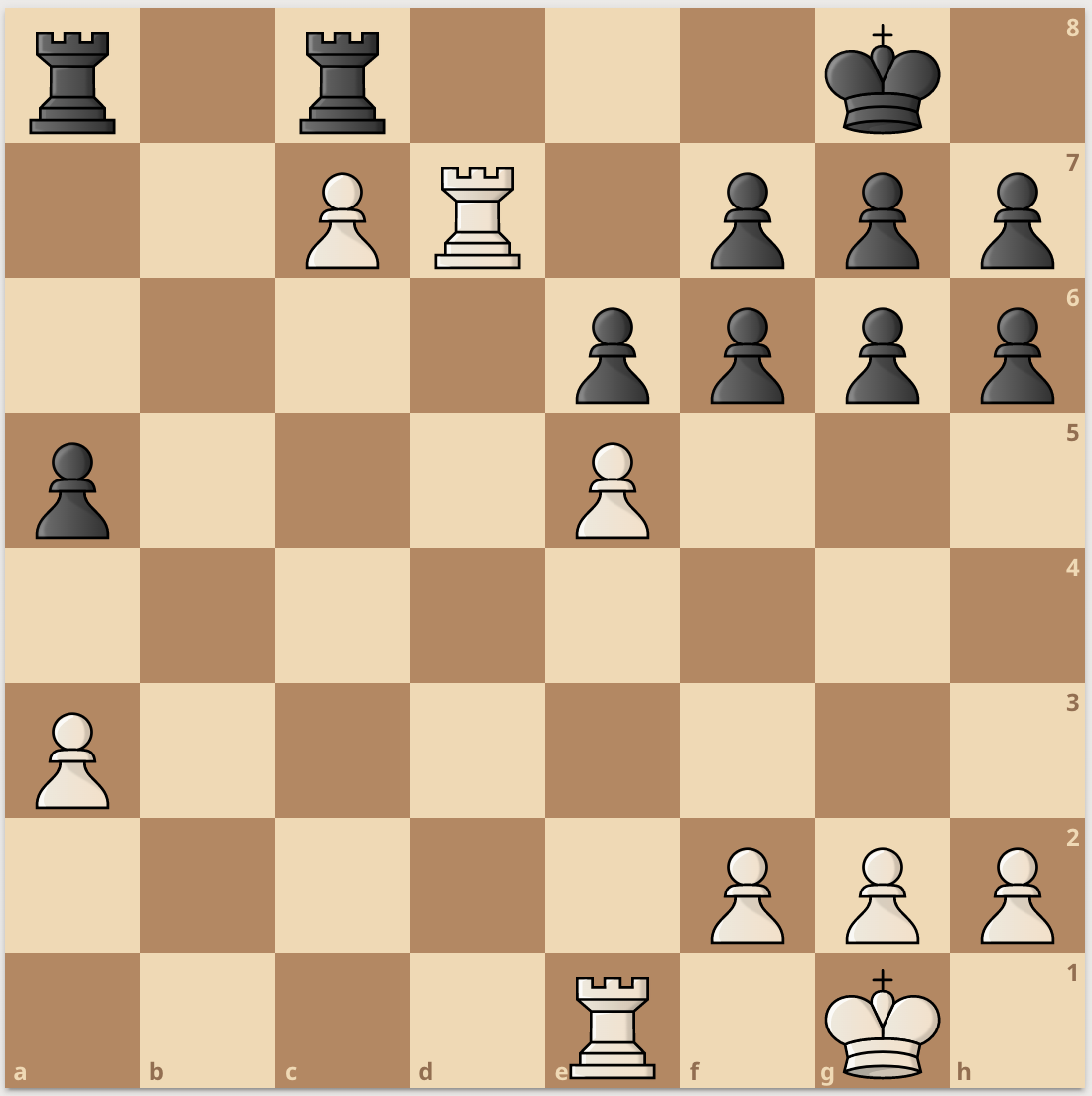

White to play. FEN : r1r3k1/2PR1ppp/4pppp/p3P3/8/P7/5PPP/4R1K1 w - - 0 1

Here, the correct answer is 1. Red1, preparing 2. Rd8+ Rxd8 3. Rxd8+ Rxd8 4. exd8=Q#. However, Black plays 1... Re8 to prevent mate, but after 2. Rd8 Kf8 3. Rxa8 Rxa8 4. Rd8+ Ke7 5. Rxa8 and the promotion 6. c8=Q is unavoidable. Then in this position White can safely promote the c pawn.
However a classical QS (even with check-extensions + check evasions) would never see the promotion and abort this line.
Here, even TQS can’t find the best line, but {search depth 4 + TQS} can find it while {search depth 4 + QS} won’t, due to pawn promotion (depth 4 is where the first capture occurs).

Pros / Cons

Advantages of TQS

Disadvantages of TQS
